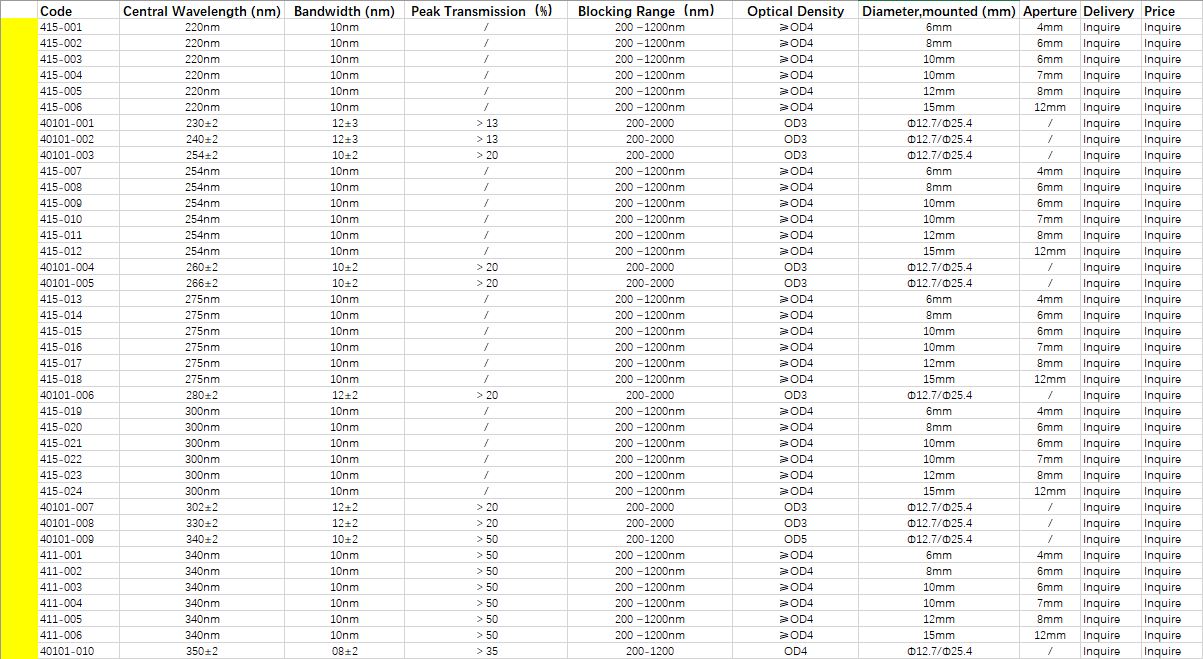

Narrow Bandpass Filters 220-350nm:

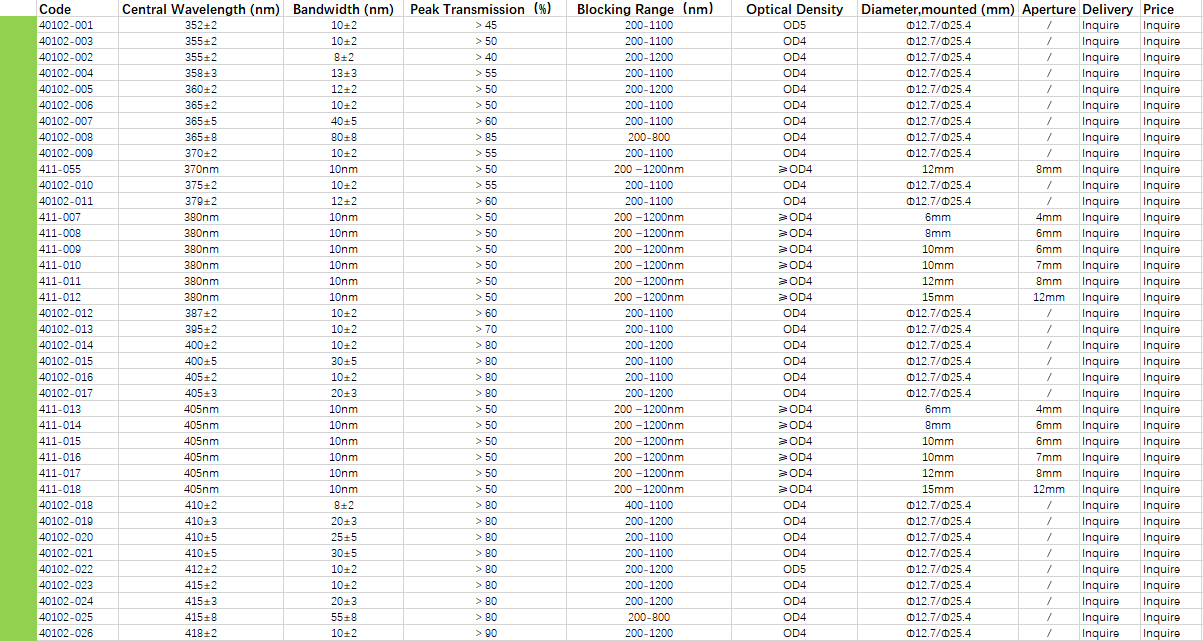

Narrow Bandpass Filters 352-418nm:

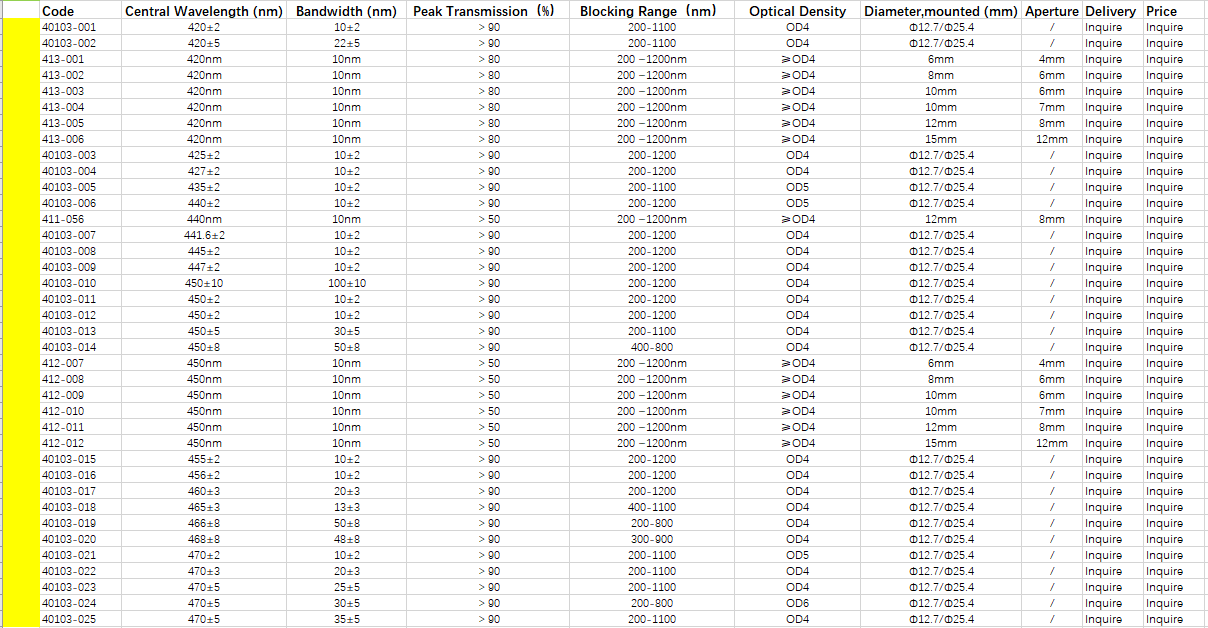

Narrow Bandpass Filters 420-470nm:

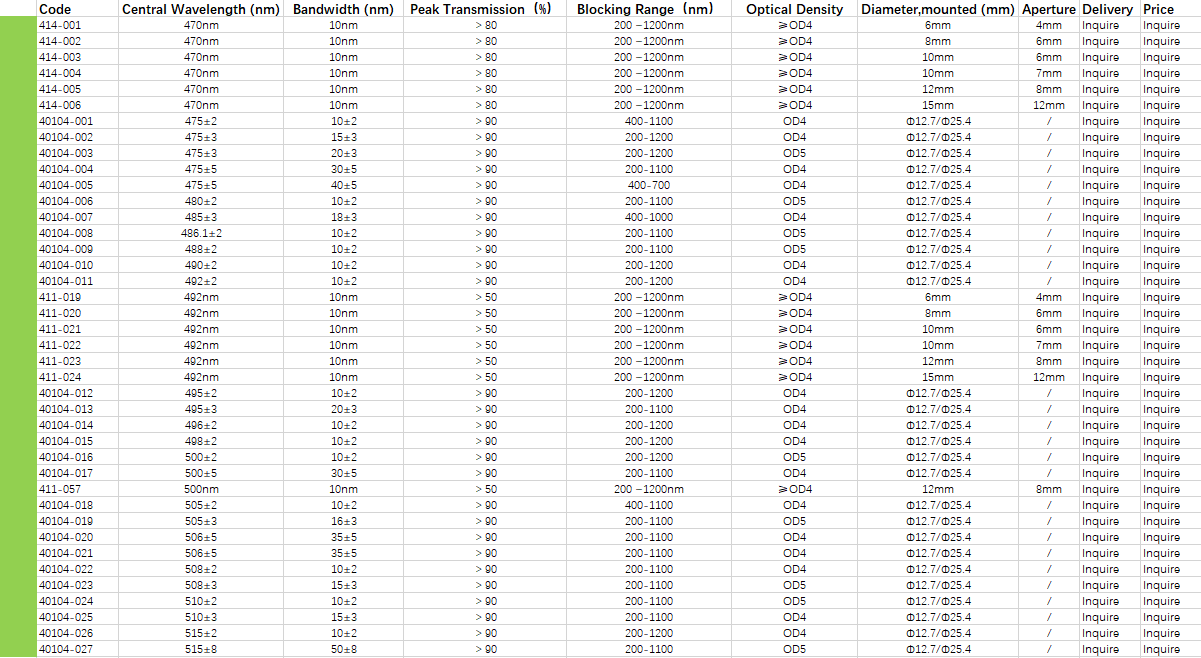

Narrow Bandpass Filters 470-515nm

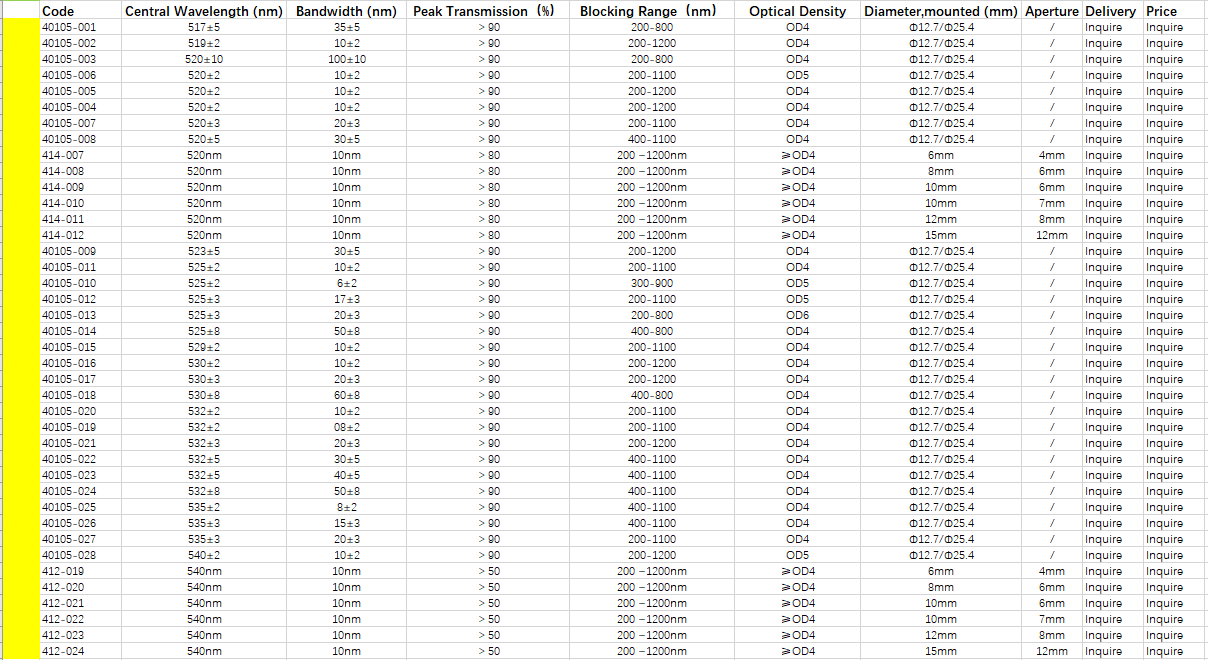

Narrow Bandpass Filters 517-540nm:

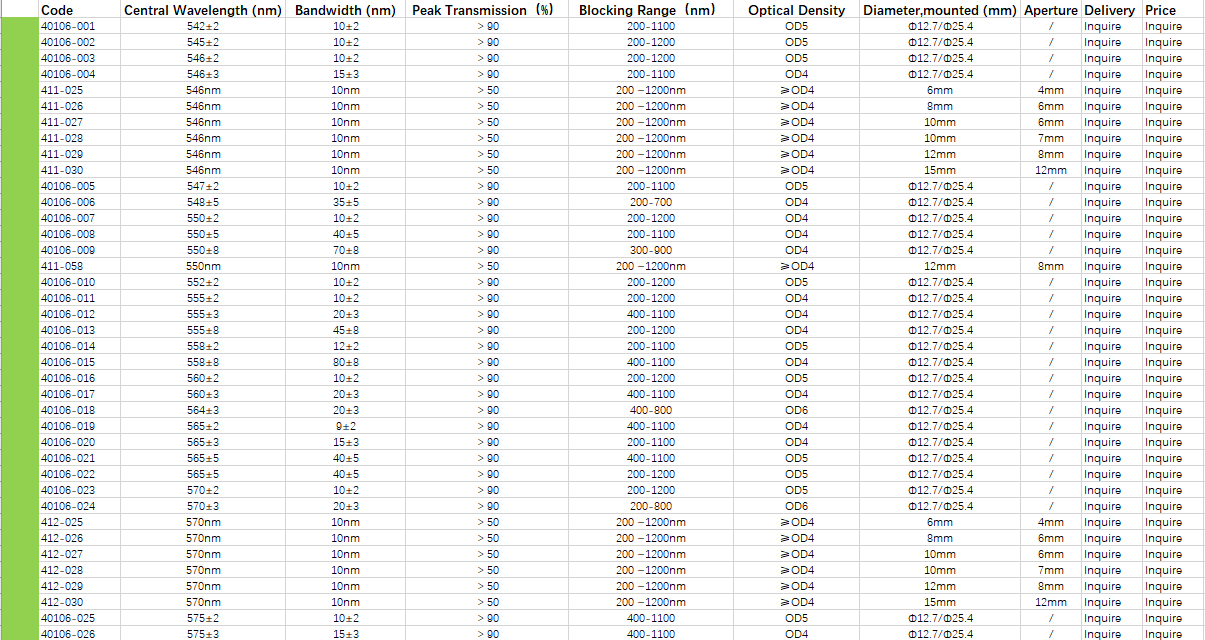

Narrow Bandpass Filters 542-575nm:

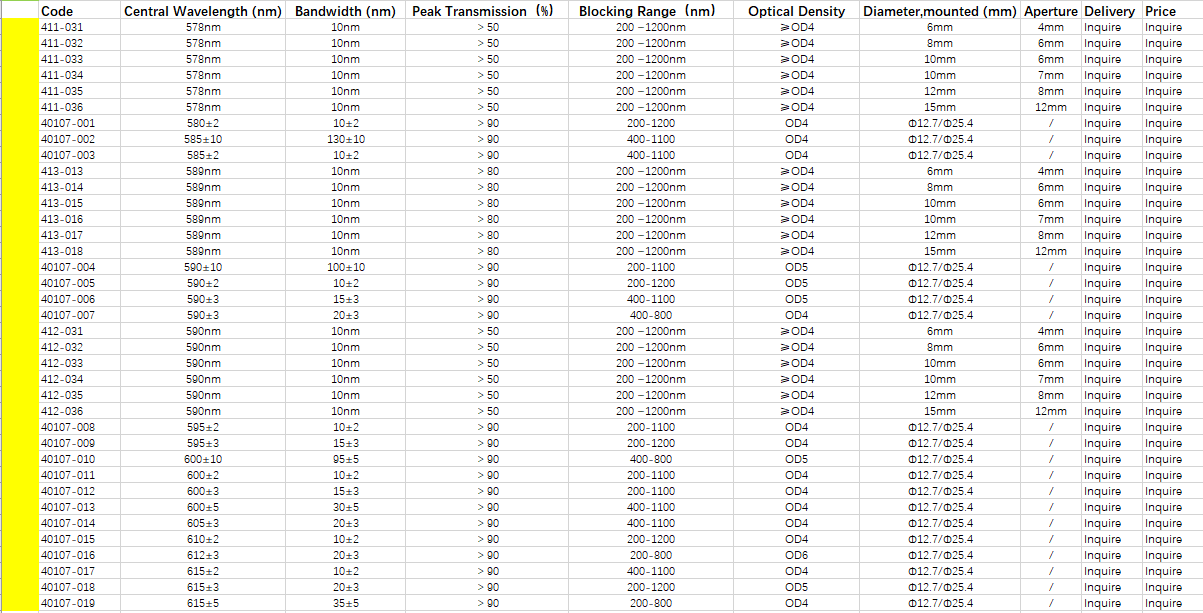

Narrow Bandpass Filters 578-615nm:

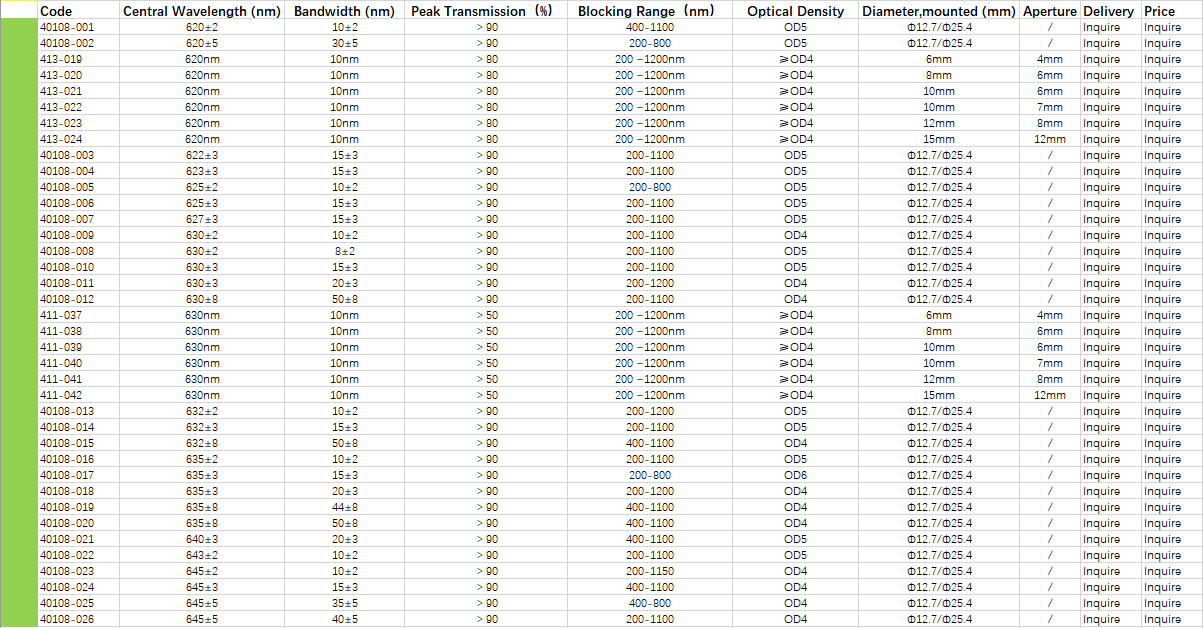

Narrow Bandpass Filters 620-645nm:

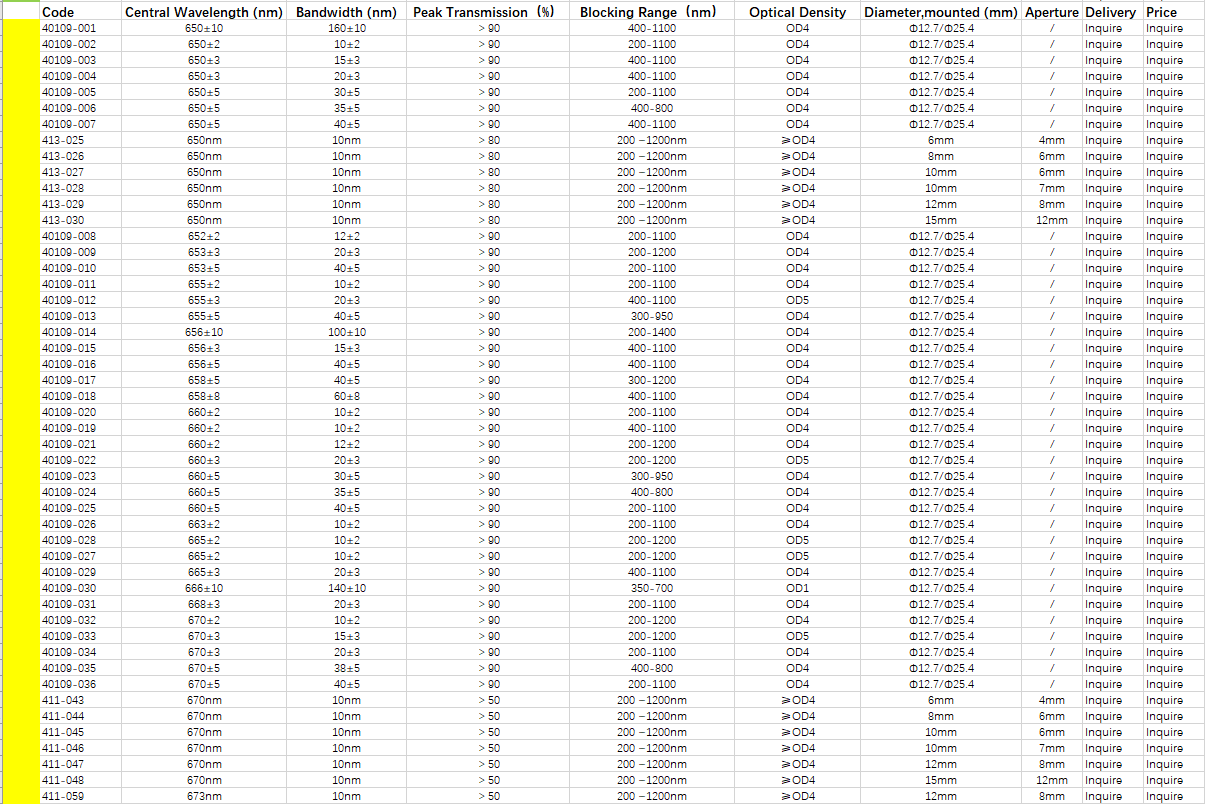

Narrow Bandpass Filters 650-673nm

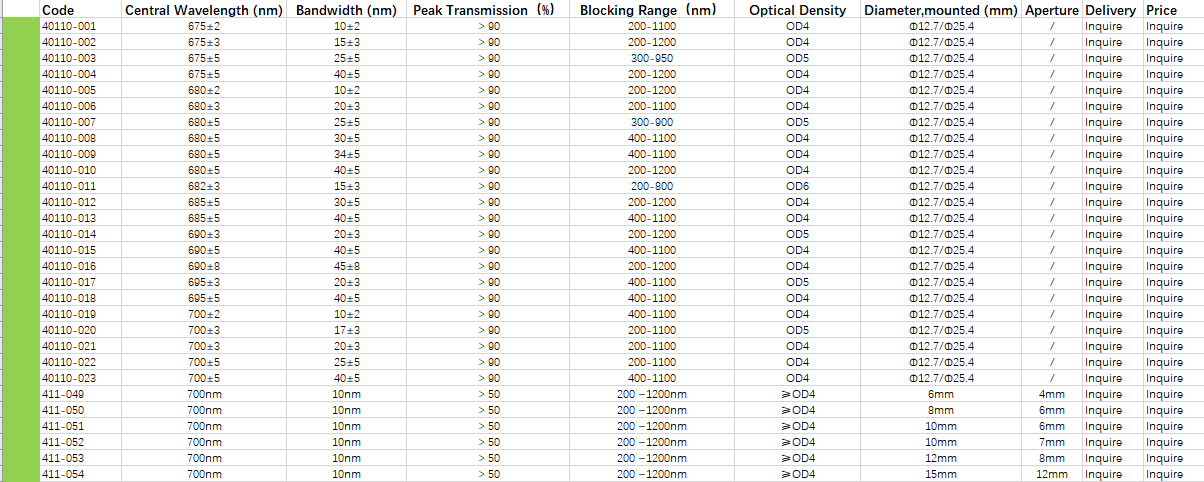

Narrow Bandpass Filters 675-700nm

Narrow Bandpass Filter is a specialized optical filter designed to transmit light within a narrow range of wavelengths while attenuating or blocking light outside that range. These filters are used in various optical and photonic applications where precise control over the spectral characteristics of light is essential.

Shanghai North Optics offers Bandpass Filters for Biochemistry Analyzers, Narrow Bandpass Filters for Enzyme Labelling Instrument, Narrow Bandpass Filters for Polarimeter, Fluorescence filters, Ultra-Violet (UV) Narrow Bandpass Filters and High Transmission Narrow Bandpass filters made of dielectric coatings and glass substrates, colored glass can be bonded with BK7 or Fused Silica substrate to further enhance the effectiveness of spectral selection (the glass we sourced are equivalent to that of Hoya). Exceptional optical performance is achieved utilizing the dielectric coating technique, furthermore, by doing so, the dependence of the optical performance on the thickness of the substrate is mitigated, so ultra-thin thickness can be realized, allowing compact integration, for instance, into a camera. The narrow bandpass filters on this page feature a wide transmission central wavelength range of 200-700nm, from Ultra-Violet (UV) to Visible (VIS) spectrum, and various options of bandwidths. Dozens of mounted stock modules with a diameter range of 6-25.4mm, and hard coatings are for choosing. We also provide custom bandpass filters tailored upon request.
