CZT (CdZnTe) Hemispherical Detectors (SZT-HM01 Series)
Fit for X-ray and medium-high energy gamma ray detection
  • Special electrode (AU) design
  • Operating at room temperature and High energy resolution
  • Short response time and Stability for long period operations
  • Main applications: space probes, industrial inspections, nuclear science and technology, homeland security, environment detections Inquire Us
  •

    Specifications:

    MaterialsCdZnTe
    Density5.8g/cm3
    Volume Resistivity> 1010Ω•cm
    ElectrodeAu
    Size5.0(±0.1)×5.0(±0.1)mm210.0(±0.1) ×10.0 (±0.1)mm2 15.0(±0.1) ×15.0 (±0.1)mm2
    Thickness Tolerance2.5(±0.05)mm5.0(±0.05)mm7.5(±0.05)mm
    Storage and
    Transportation Environment
    Temperature10℃-40℃
    Humidity20%-80%
    Operating EnvironmentOperating Temperature0℃-40℃(standard), -20-40℃(Tailor-made)
    PerformanceEnergy Range10KeV(beryllium window)-3MeV

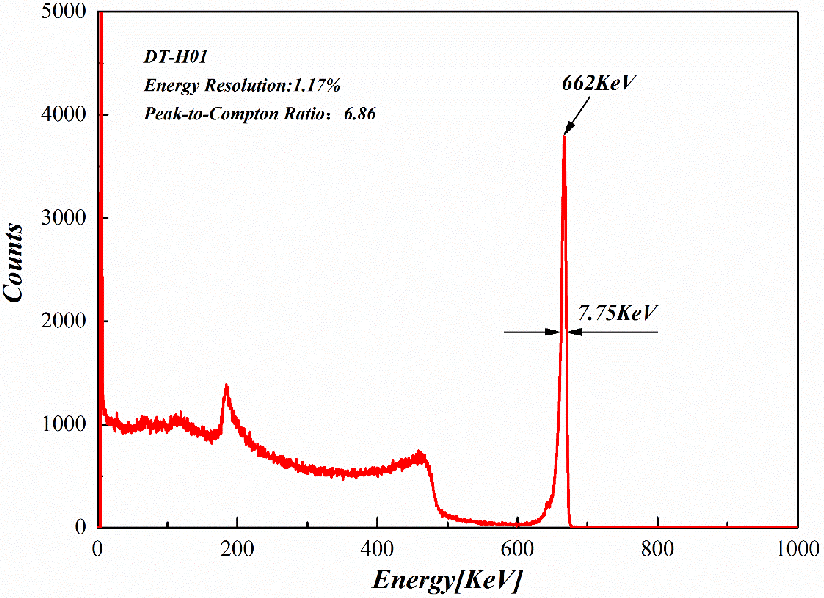

    Energy Resolution(22℃)<3%@662KeV







    CdZnTe hemispherical detectors or CZT half-spherical probes are special electrode-designed detectors, by the special design which are based on potential theory, the "sensitive area" of the CZT detectors is hemispherical, and then the influence of the hole on the signal can be reduced, which makes the CdZnTe hemispherical detectors can measure the high-energy rays in high energy resolution, the energy resolution is better than 3% for the 137 cs @ 662 KeV gamma rays. Shanghai North Optics provides the CZT-HM01 series CZT (CdZnTe) hemispherical detectors, which can be used for X-ray and medium-high energy gamma-ray detection. With excellent energy resolution, this detector is widely applied in nuclear science and technology, homeland security, environment detection, space probes, and industrial inspection, etc.
