CZT (CdZnTe) Pixellated Detectors (CZT-PX01 series)
Operating at room temperature;High energy resolution
  • Special electrode (AU) design
  • Short response time and Stability for long period operations
  • Pixellated Array with effective Z of 50 and a density of 5.8 g/cm3
  • Main applications: space probes, industrial inspections, nuclear science and technology, homeland security, environment detections Inquire Us
  • Specifications:

    Materials CdZnTe crystals Density 5.8g/cm3
    Volume Resistivity >1010Ω·cm Electrode Au
    Pixel Size 1.1×1.1mm2 Pixel Array 8×8
    Operating Temperature -20℃-40℃ Size 10.0(±0.1) ×10.0(±0.1)mm2
    Thickness Tolerance 2.0(±0.1)mm
    5.0(±0.2)mm
    Energy Range 6KeV-350KeV
    20KeV-700KeV

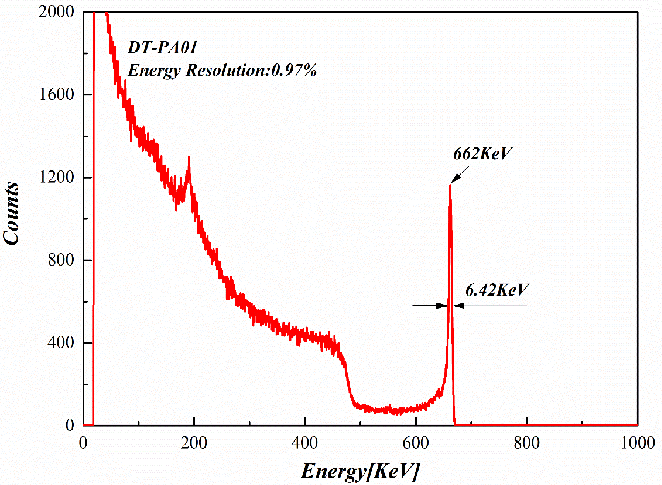

    Energy Resolution(22℃) <6%@59.5KeV
    <4.5%@122KeV&
    <3%@622keV
    Storage and
    Transportation Temperature
    10℃-40℃
    Storage and
    Transportation Humidity
    20%-80%

    The CZT (or CdZnTe) semiconductor detector is a pixellated array with an effective Z of 50 and a density of 5.8 g/cm3. Gamma rays enter the CZT semiconductor detector and are directly converted to electron-hole pairs. These charges (electrons and holes) then drift towards positive and negative electrodes, respectively, inducing electrical output signals. Shanghai North Optics provides the CZT-PX01 series CdZnTe pixellated detectors based on CZT semiconductor techniques, with a unique electrode design, our CZT pixellated detectors have excellent energy resolution and spatial resolution. The detectors are fit for a variety of gamma-ray detection applications: space probes, industrial inspection, nuclear science and technology, homeland security, environment detection, etc.
