Modules or Types:

Below are some available models of  Dichroic Filters used for RGB light show applications (designed for AOI=45°)

Index	Reflection and Transmission Range
1	Red 650nm reflected Green 532nm transmitted
2	Blue 473nm reflected Green 532nm transmitted Red 650nm transmitted
3	Blue 473nm Reflected Green 532nm reflected Red 650nm transmitted
4	Red 650nm reflected Blue 473nm transmitted Green 532nm transmitted
5	Green 532nm reflected Red 650nm transmitted
6	Green 532nm Reflected Red 650nm reflected Blue 473nm transmitted

Note: Other models of Dichroic Filters are available upon request.

Dichroic Filters reflect a range of wavelengths and transmit others based on the principle of interference, through deliberate engineering of dielectric coatings deposited and substrates, dichroic filters can realize precise selection of light. Because the filters split light into two components: a reflection component and a transmission component, a user can select spectral regions of interest and decide whether the separated light spectrum should be utilized or dumped. Because the unwanted portion of the light is reflected instead of absorbed by the filters, dichroic filters can endure light sources with higher intensities.

This catalog specifies North Optics's Dichroic Filters for RGB Laser Show, these dichroic filters offer combinations of exceptional transmittance and reflectance at red (650nm), green (532nm), blue(473nm) wavelengths. Multitude standard groupings of transmission and reflection of RGB wavelengths are available, while we also provide custom options. Various dichroic filters with wide operation wavelengths are also available in Shanghai North Optics including long pass filters, short pass filters, dichroic bandpass filters, dichroic band stop (notch) filters, and filters for color correction. our dichroic filters serve as excellent components to separate color in CCD imaging, digital projection, light show, machine vision, and printing.

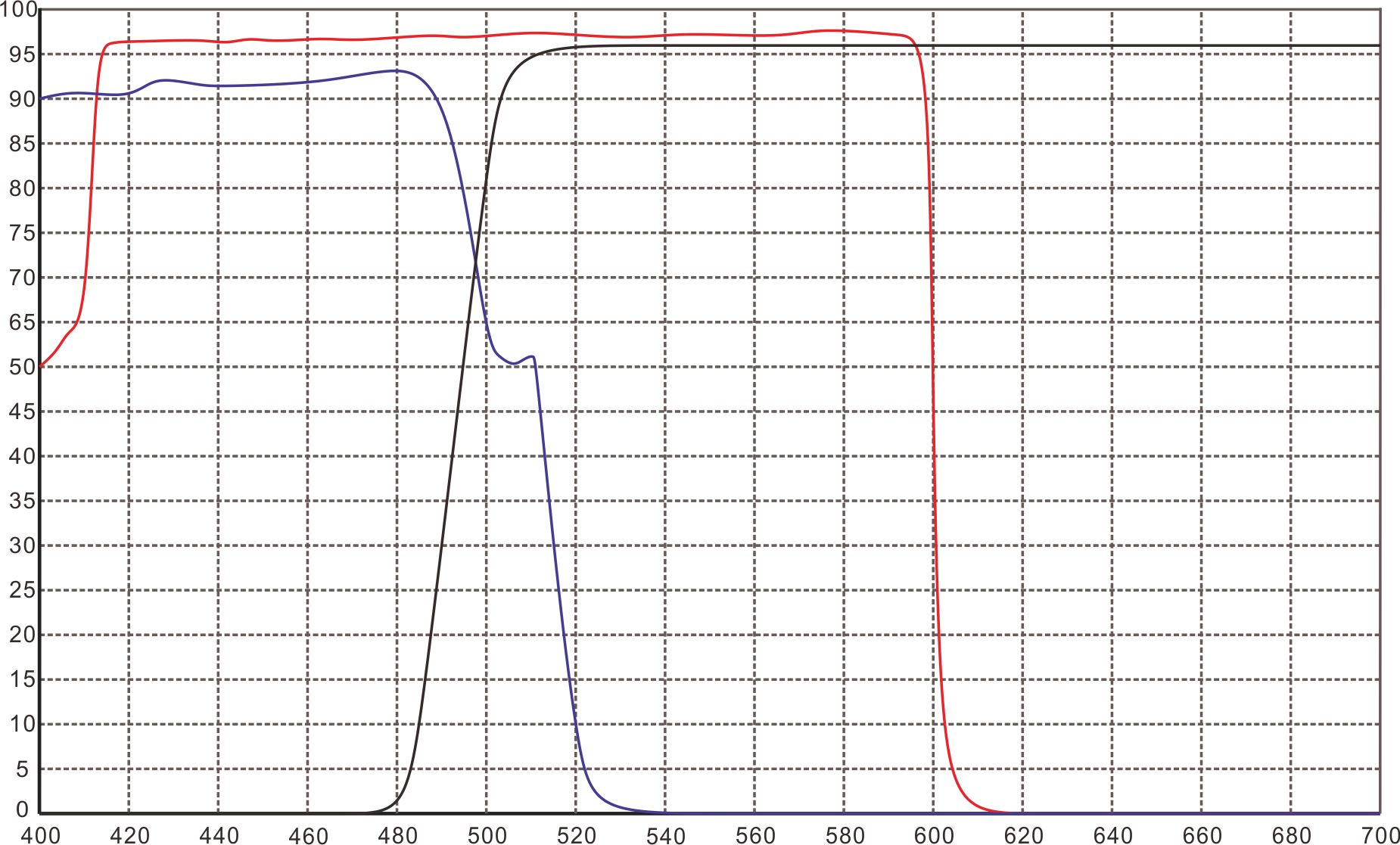

Coating Curves Example:
