GAGG(Ce) Scintillation Arrays

Good matching for photodiode and avalanche diode readout

Best light output in all series of oxide crystals and short decay time

No self-radiation and non-hygroscopic

High density (LuAG: Ce, GAGG: Ce) and very high light yields (GAGG: Ce)

Customized sizes or specifications available upon your request

Minimum pixel or crystal element size: 0.3mm x 0.3mm

Applications: Positron Emission Tomography (PET), PEM, SPECT, and CT SPECT scan systems, Neutron sensors, Oil detection, security inspection, Geophysics

Inquire Us

Basic Properties:

Wavelength Range	475 – 800nm	Density	6.63g/cm³
Hygroscopicity	No	Melting Point	1850°C
Hardness	8 Mhos	Decay Time	≤88 ns
Solubility	N/A	Refractive Index	1.9 @540nm
Light Yield	57000 photons/MeV	Energy resolution	5.2%@662keV

Note:

Other sizes or specifications can be customized upon your request.

GAGG(Ce) scintillator crystals are useful in diverse applications such as:
Medical Imaging - PET, PEM, SPECT, and CT
Specialist applications in high energy, nuclear, space, and medical physics

GAGG(Ce) - Gadolinium Aluminum Gallium Garnet (Gd₃Al₂Ga₃O₁₂) doped with Ce is a newly developed scintillator material. GAGG(Ce) is one of the brightest scintillators with an emission peak at 520nm, which matches great with Photodiodes (PD) and Silicon Photon Multiplier (SiPM). GAGG(Ce) features excellent stabilities under exposure to radiation, a high ruggedness, and is well fit for a broad range of applications. Furthermore, GAGG(Ce) scintillation crystals have good energy resolution and high density; it is non-self-radiant and non-deliquescent.

Shanghai North Optics offers a series of GAGG(Ce) Scintillation Arrays with custom dimensions and pixel sizes. Our GAGG series scintillator products have been widely applied in Time-of-Flight Positron Emission Tomography (TOF-PET), Positron Emission Mammography (PEM), Single Photon Emission Computed Tomography (SPECT), Computerized Tomography (CT), X-radiation and gamma detection applications in nuclear, space, industrial, medical fields. Besides, Bulk GAGG(Ce) Scintillators and GAGG (Ce) Scintillator Screens are also available.

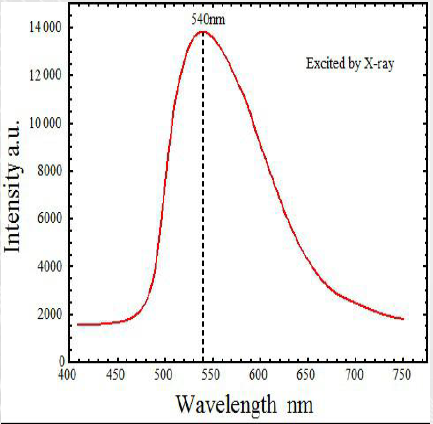

GAGG Wavelength

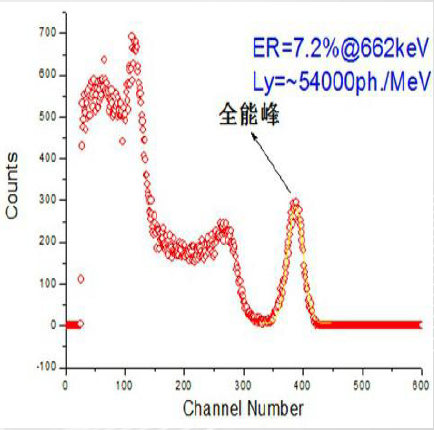

GAGG Channel Number
