Plastic Scintillators SP102 for Beta Ray Detection
High detection efficiency for Beta-Ray detection
  • Polystyrene Based ,Excellent uniformity and no deformation
  • Short Decay Time of 2.4ns
  • Thickness range of 0.25-1.0mm and various shapes available
  • Different doping composition from SP101 Inquire Us
  • Specifications:

    Substrate Materials Polystyrene Density (g/cm3) 1.023
    Refractive Index 1.58 Light-output (related to anthracene crystals ) 64%

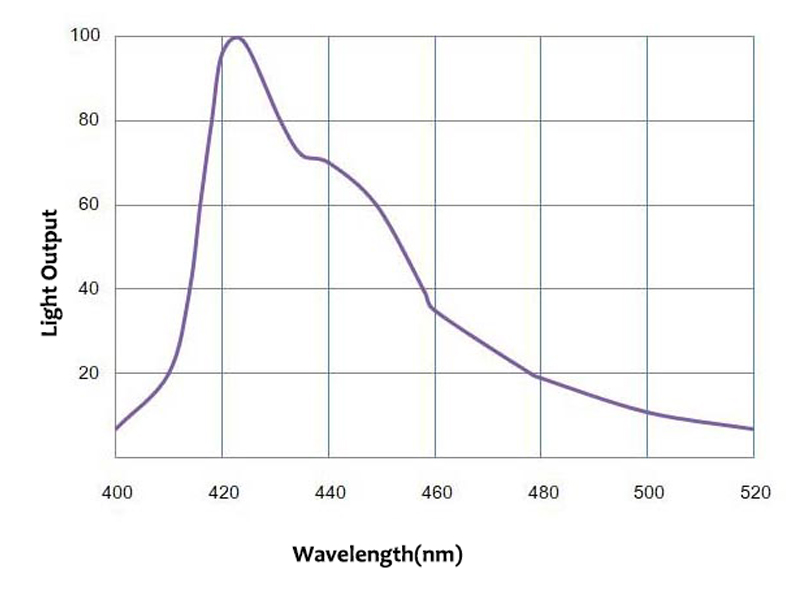

    Emission Peak Wavelength (nm) 423 Decay Time (ns) 24
    Softening Temperature (℃) 75 Operation Temperature Range (℃) -40 ~ 55
    Measuring Range 50keV ~ 3MeV

    Plastic scintillator SP102 is made from the same kind of materials as plastic scintillators SP101, but the doping composition is different from that of SP101.  SP102 series plastic scintillators are developed for Beta-Ray (or β-ray) detection, the thickness is often in the range of 0.25~1.0mm, small thickness could decrease the light output generated by Gamma-Ray (or γ-ray). Plastic scintillators SP102 have high detection efficiency, excellent uniformity, and no deformation.

    Shanghai North Optics offers the custom plastic scintillator SP102  upon the customer's request.
