Plastic scintillation SP123 (Equal to EJ442) for Alpha Ray Detection
Fit for α-ray detection
  • Based on PMMA and surfaces painted with ZnS(Ag) layers
  • excellent homogeneity and uniformity
  • Various shapes and large dimensions up to 1000mm x 1000mm available
  • ZnS(Ag) layers with a standard thickness of 4.5mg/cm2 and other designed thicknesses optional Inquire Us
  • Specifications:

    Parameters
    PMMA ZnS(Ag)
    Substrate Materials PMMA ZnS(Ag)
    Density(g/cm3 1.19 4.1
    Light Output (related to anthracene crystals ) 280%

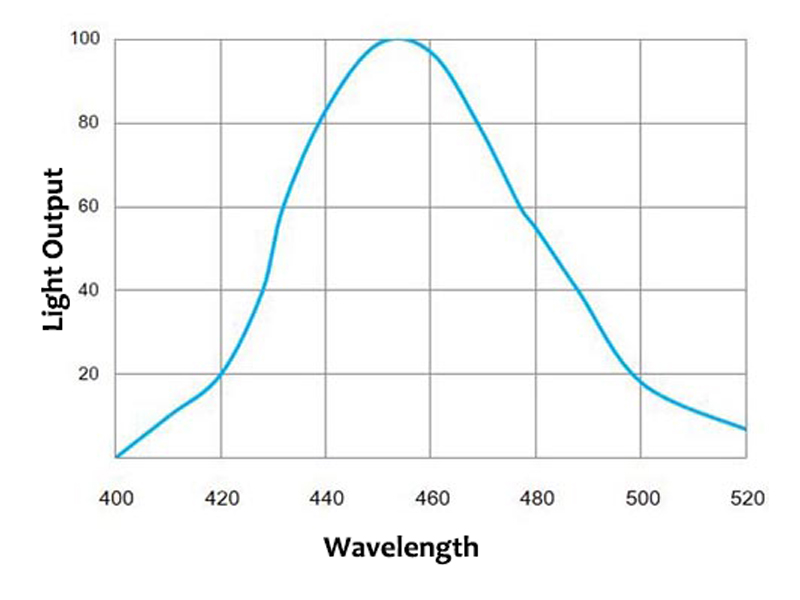

    Emission Peak Wavelength (nm) 450
    Decay Time (ns) 200
    Operation Temperature Range(℃) -40~55 -40~55
    Thickness of Painting Layer(mg/cm2 4.5

    Shanghai North Optics offers the SP122 (Equal to EJ442) series plastic scintillators, which are used for α-ray detection, a ZnS(Ag) layer is painted on the surface of Poly Methyl Methacrylate (PMMA) plastic materials, ZnS(Ag) are used as the scintillation materials, with a peak emission at 450nm. The usual thickness of ZnS(Ag) is 4.5mg/cm2  and the common thickness of PMMA is between 0.1mm to 10mm. SP122 plastic scintillators can be made into a large area, sizes up to 1000x1000mm are available. Advanced and sophisticated processing is used to make the ZnS(Ag) painting, which makes the final scintillators have excellent homogeneity and uniformity.
