LaBr3(Ce) Scintillator Crystals

High light output

Excellent energy resolution

Fast decay time and High count rate capabilities,

Excellent radiation hardness

Maximum Dimensions: ɸ 100 mm x 300 mm

Double Optical Window Structure Available

Main applications: High energy physics, Nuclear radiation detection, Well logging Inquire Us

Basic Properties:

Melting Point (ºC)	1116	Density (g/cm³)	5.2
Hygroscopic	Yes	Wavelength of Emission Max. (nm)	380
Refractive Index @ Emission Max.	1.9	Decay Time (ns)	25
Energy Resolution (%)	<3.5	Light Yield (photons/MeV)	63000
Cleavage Plane	<100>

Specifications:

Formula	LaBr3(Ce)	Maximum Dimension	Ø 75 mm x 75 mm
Available Items	Single crystals with Aluminum housing and optical window

Cesium Doped Lanthanum Bromide, LaBr3(Ce) Scintillators is a new-generation nuclear radiation detection scintillation material. LaBr3 (Ce) scintillator crystals have many outstanding performances: high energy resolution, high time resolution, high light output, suitable energy non-linearity, short decay time, etc. They are widely used in environmental monitoring, oil well logging, nuclear medicine, high-energy physics, security, counter-terrorism, and nuclear identification.

Shanghai North Optics offers custom encapsulated LaBr3(Ce) scintillation crystals on custom requirements. Our unique crystal growing technique makes the maximum crystal dimension of Dia100 mm x 300 mm available. Photomultiplier Tubes (PMT) and electronic modules could be assembled with LaBr3(Ce) scintillators if required.

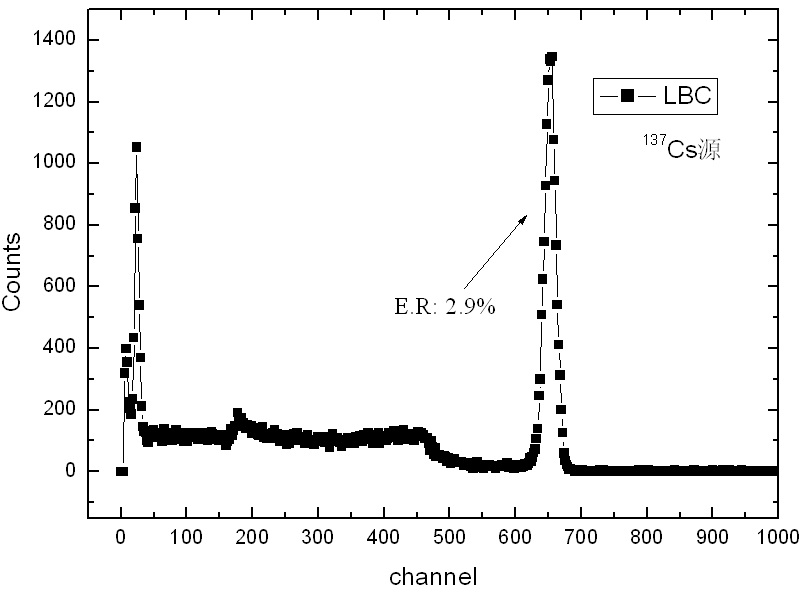

Spectrum of the LaBr3(Ce) Scintillators:
