LaCl3(Ce) Scintillator Crystals

High light output and good energy resolution

Fast decay time and High count rate capabilities

Maximum Dimension: Dia75 mm x 75 mm

Single/Double Optical Window Structure available

Detectors could also be assembled with PMT/electronic modules

Applications: High energy physics, Nuclear radiation detection, Well logging Inquire Us

Basic Properties:

Melting Point (°C)	1135	Density (g/cm³)	3.85
Hygroscopic	Yes	Wavelength of Emission Max. (nm)	350
Decay Time (ns)	<28	Energy Resolution (%)	3.5~4
Light Yield (photons/MeV)	40000	Cleavage Plane	<100>
Refractive Index @ Emission Max.	1.9

Specifications:

Formula	LaCl3(Ce)	Maximum Dimension	Ø 75 mm x 75 mm
Available Items	Single crystals with Aluminum housing and optical window

Cerium-doped Lanthanum Chloride or LaCl3(Ce) Scintillator Crystals belong to hexagonal crystalline systems. The light output of LaCl3(Ce) crystals is similar to the NaI(Tl) scintillators. Still, their decay time is 28ns, which is only 1/10 of NaI(TI) scintillators, and the energy resolution of LaCl3(Ce) is 1/2~2/3 of NaI(Tl) crystals, and it also has good mechanical properties. In addition, LaCl3:Ce crystals have excellent temperature performance and a good consistency of energy resolution within a wide temperature range.

Shanghai North Optics offers custom LaCl3(Ce) scintillator crystals on custom requirements, with a maximum dimension of Dia 75 mm x 75 mm. The LaCl3(Ce) crystals would often be encapsulated in the aluminum housing with one or two optical windows. Photomultiplier tubes (PMT) and electronic modules could be integrated with the scintillation detector.

Applications:

High energy physics
Nuclear radiation detection
Petroleum well-logging

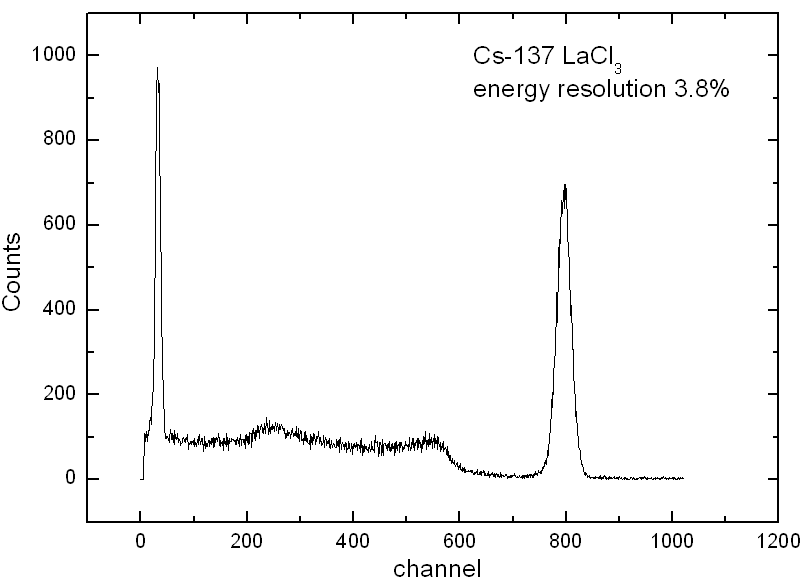

Spectrum of the LaCl3(Ce) Scintillators:
